Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments |
|---|---|---|---|---|---|---|---|---|
| CHANNEL_NAME | CHAR | 64 | null |
|
|
The replication channel name that connects source and replica. |
||
| HOST | CHAR | 255 | null |
|
|
The source hostname that the replica will attempt to switch over the replication connection to in case of a failure. |
||
| PORT | INT | 10 | null |
|
|
The source port that the replica will attempt to switch over the replication connection to in case of a failure. |
||
| NETWORK_NAMESPACE | CHAR | 64 | √ | null |
|
|
The source network namespace that the replica will attempt to switch over the replication connection to in case of a failure. If its value is empty, connections use the default (global) namespace. |
|
| WEIGHT | INT UNSIGNED | 10 | null |
|
|
The order in which the replica shall try to switch the connection over to when there are failures. Weight can be set to a number between 1 and 100, where 100 is the highest weight and 1 the lowest. |
||
| MANAGED_NAME | CHAR | 64 |
|
|
The name of the group which this server belongs to. |
Relationships

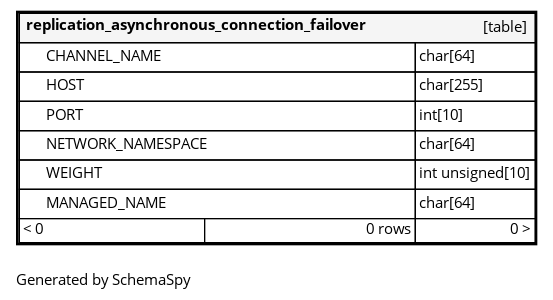

Close relationships within degrees of separation
